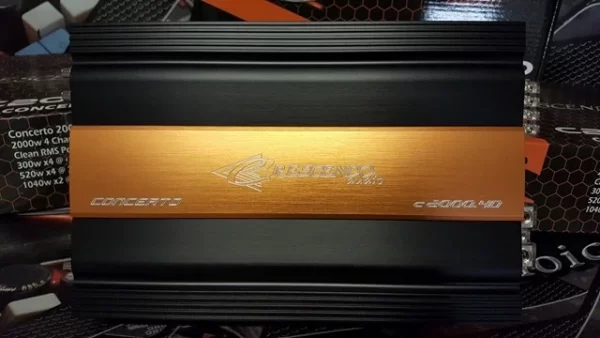

Crescendo Audio C2000.4D
All Concerto D series amplifiers now feature our newly designed 2018 BC/Concerto heatsink case!
4 channel Class D Full Range Amplifier
Capable of over 1040rms bridged x2 @ 4ohm of pure Class D power!
Highpass/Full/Bandpass 100% Custom Designed Active capable Crossover network with x10 multiplier switch
Custom 24db defeatable crossover network with up to 8khz highpass/lowpass settings
2ch/4ch selector switch to eliminate the need for “Y” cables when bridged
Quiet, Variable Speed Fan for Efficient Cooling
Individual Clipping Indicator for each channel located on side panel
Custom tooled, proprietary Multi-piece Thermal optimized Heatsink with patent pending interlocking slide-out CNC engraved top plate.
2 stage copper anodized removable top plate.
Silver plated high end hard-wired Tiffany RCA inputs for optimal signal fidelity for both Inputs and Outputs

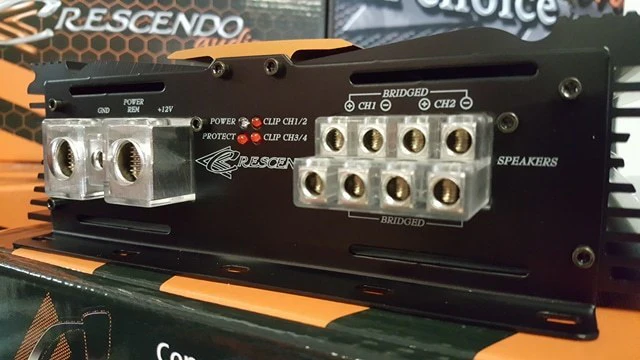

1/0 Power/Ground Inputs for efficient current transfer.

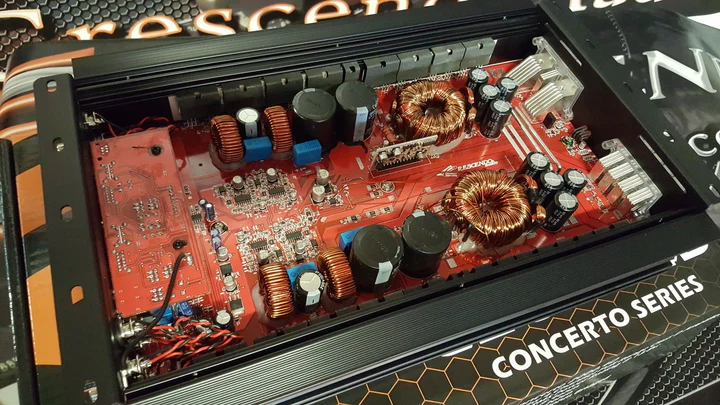

Overbuilt Power supply with heavy copper traces and Military spec PCB/heavy duty standoffs for extreme vibration resistance.
Manufactured using some of the highest quality and most reliable electrical components, with many 3% tolerance components throughout.
C2000.4 Rated Power Output(RMS)
Clean RMS power on 13.8v standard electrical system:
300w x4 @ 4ohm
520w x4 @ 2ohm
1040w x2 @4ohm Bridged
Incredibly compact footprint!
Dimensions : 15″ x 2.75″ x 9.5″
Dave –
Running 4 10″ mid-bass woofers (200 RMS, 4 ohm each) on this amplifier. The amplifier isn’t even hot after an hour with the volume at 90%! Tons of clean power that just keeps going. My ammeter reports an average amp draw of 18 Amps from the alternator! Crazy good! I wish I would have known about the Crescendo Audio brand earlier!
Cesar Castillo –
Great amp just bought another while old one gets repaired had issue with stuck in protect Mode sending tracking number in a few under same email [email protected]
Unknown –
I have this amp powering 4 6.5″, 2 8″, 4 tweeters and 2 horns. All from Eminence. I don’t think I could’ve chose a better amp to do the job. I love this amp and will recommend it to anyone looking for a small 4 channel with power to spare
James Landgrave –
This is by far one of the best 4 channel amps I have ever owned. Flawless in design, top quality parts, and completely dummy proof.
I have all crescendo products and don’t plan to change anytime soon.
Tyler Palomaki –
What can I say. The quality of Crescendo products speaks for itself. This amp is no different. Plan on using it bridged to drive two of the new mid bass speakers. Band pass crossovers make it perfect for this application. I don’t know why more manufacturers aren’t adding them.
